Pogo pins do not need to be gold-plated. For pogo pins where electrical performance is less critical, where appearance and corrosion resistance are the only requirements, nickel or other plating options can be used instead of gold. Furthermore, in some special environments, such as wearable electronic devices exposed to human sweat, composite plating without gold plating is also used.

Optimizing gold plating thickness: Select an appropriate gold plating thickness based on the product's actual application scenario and performance requirements. For example, for Pogo pin with less demanding lifespans and in more favorable operating environments, the gold plating thickness can be reduced from the typical 3u" to 1u", which can reduce costs to a certain extent. There's no significant difference in lifespan or compression reliability between 1u" and 3u" gold plating; the 3u" version offers slightly better wear resistance.

Choosing alternative plating: Using new plating materials and technologies to replace traditional gold plating. For example, AIMS amorphous iridium plating technology, a nickel-based alloy system that combines an amorphous structure with iridium, surpasses traditional plating in key performance indicators like corrosion resistance, conductivity, and hardness. Some performance even surpasses gold and silver, while significantly reducing the cost per connector.

Improving the electroplating process: Optimizing the electroplating process reduces unnecessary steps and processes, improving production efficiency, and thus reducing costs. For example, AIMS technology operates at a temperature of only 65-80°C, far lower than some high-temperature plating processes. The process is simple, eliminating redundant steps like masking and stripping, and increases production efficiency by 50% compared to traditional Ni+Au processes. With these improvements, the defect rate has dropped from 3%-5% to below 0.5%.

Bulk Procurement and Cost Control: By establishing long-term, stable partnerships with suppliers, we can purchase in bulk and secure more favorable prices. We also optimize supply chain management to reduce raw material procurement and transportation costs.

It’s a practical approach to focus on the selection criteria for magnetic connector gold plating thickness, as it helps you accurately meet requirements without unnecessary costs. There is no universal standard for the gold plating thickness of Pogo pins; the core lies in making a comprehensive decision based on three key dimensions: application scenario, performance requirement, and cost budget.

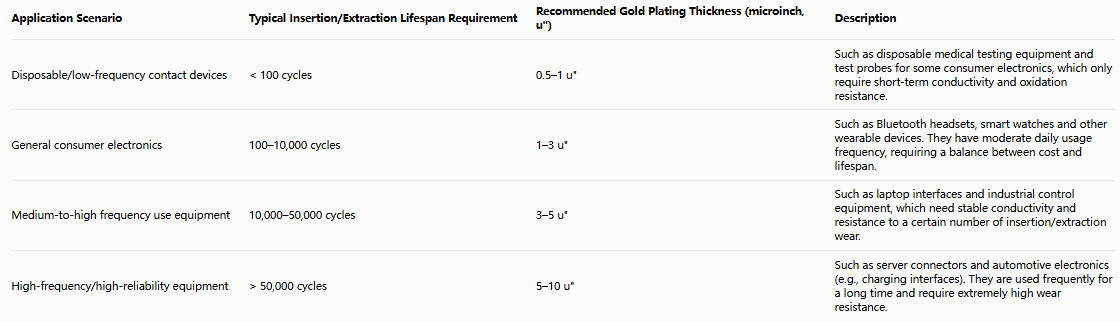

The frequency of use and lifespan requirements of different devices directly determine the minimum gold plating thickness.

Harsh environments accelerate coating wear, so thicker coatings are needed to enhance protection.

Ordinary dry environments: For equipment used in indoor offices with no obvious moisture or salt, a conventional thickness of 1–3 u" is sufficient, mainly to meet conductivity and basic oxidation resistance needs.

Humid/high-salt environments: For outdoor equipment and smart products used in bathrooms, a thickness of 3–5 u" is required to enhance barrier against moisture and salt, preventing rapid corrosion of the coating.

Corrosive environments: For industrial workshops (with chemical volatiles) and medical equipment (in contact with disinfectants), a thickness of 5 u" or more is recommended. Alternatively, a base coating (e.g., nickel underlayer) can be used to double the corrosion resistance.

The core advantage of gold plating is its low contact resistance. The higher the requirement for conductivity, the more careful the thickness selection should be.

Low-current scenarios (e.g., signal transmission, < 100mA): 1–3 u" is sufficient, as the contact resistance of thin coatings can already meet the needs of stable signal transmission.

Medium-to-high current scenarios (e.g., charging, power supply, > 1A): A thickness of 3–5 u" or more is recommended. Thicker coatings can reduce current loss and prevent coating wear caused by local heating.
